BC Topographic Survey Guide for Permit Drawings

Date Published: April 14, 2026

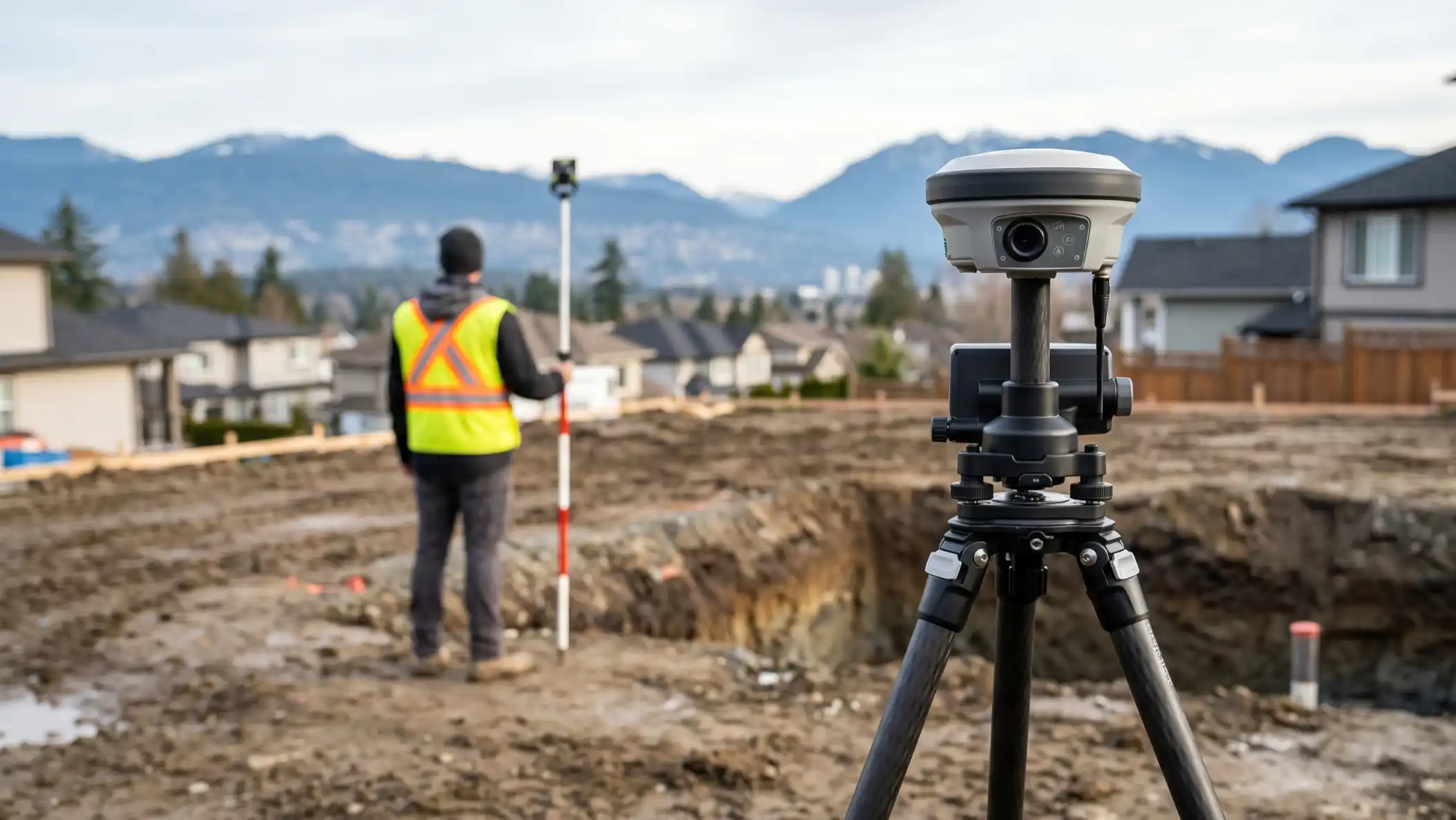

In British Columbia, you cannot build on a guess. Whether you're planning a custom home in Coquitlam or a multi-unit project in Surrey, the municipality won't even look at your application without a Topographic and Boundary Survey performed by a BCLS (BC Land Surveyor).

At Canadian Blueprint, we don't start our Revit models until we have real, stamped data. It's the only way to protect your investment and ensure your permit drawings are grounded in reality.

The Handshake: Interior vs. Exterior

A common mistake is thinking one survey does it all. I often tell my clients: "The Land Surveyor maps the world outside your walls; we map the world inside them."

A topographic survey gives us the "Legal Frame"—the property lines, utility stubs, and the slope of the land. But for a renovation or addition, we need to know exactly where your existing plumbing stacks are, the true thickness of your walls, and the precise height of your basement joists.

Using High-Precision LiDAR technology, we create a millimeter-accurate interior map. We then "anchor" our 3D model to the BCLS pins. This ensures your new addition connects perfectly to the existing structure without any "on-site surprises."

BCLS vs. Structural As-Builts: Know the Difference

Feature	BCLS Topographic (Exterior)	[Structural As-Builts](/services/as-built-measuring/) (Interior)
Legal Boundaries	Yes. Sets legal property pins.	No. We map the building structure.
Internal Assemblies	None. (They stay outside).	Complete. 3D structural mapping.
Wall Geometry	None.	Yes. Captures precise wall thicknesses.
Permit Use	Required for Site Plans & Heights.	Required for [Home Renovations](/services/home-renovation/).

The "Surgical" Data Package

When you call a surveyor, ask for a Topographic and Boundary Survey for Design Purposes. Specifically, ensure the package includes:

Digital CAD Files (.dwg): Vector data is mandatory for permit drawings.
Boundary Pins: Confirmed locations of your property corners marked on-site.
Topographic Contours: 0.5m intervals to design foundations and drainage.
Average Natural Grade (ANG): Crucial for SSMUH multiplexes to maximize building height.
Existing Features: Trees over 20cm DBH, utility poles, and neighboring structures.

1
Hire a BCLS
2
Request Topographic Survey
3
Confirm CAD File Delivery
4
Sync Structural As-Builts

Survey Data Checklist for Permit Drawings

Use this checklist to confirm your surveyor will deliver everything needed before design starts.

Step	What to Do	Official Link
1. Hire a BCLS	Confirm the firm holds current registration with the Association of BC Land Surveyors.	ABCLS Member Directory
2. Request Topographic Survey for Design	Specify topographic contours (0.5m or 1.0m), boundary pins, existing trees, and all easements.	ABCLS.ca
3. Confirm Digital CAD Delivery	Require .dwg vector file delivery. A PDF-only survey cannot be used for high-precision 3D Revit modelling.	Contact Canadian Blueprint
4. Integrate Structural Data	Email the .dwg file to us. We will layer this with our internal LiDAR data to create a 'Digital Twin' of the property.	As-Built Measuring

Trusted Surveyors in the Lower Mainland

I recommend these firms because their data is clean and integrates seamlessly with our design and drafting workflow:

Target Land Surveying: Fast, efficient, and reliable for residential projects.
Bennett Land Surveying: Excellent for complex, steep-slope sites.
Underhill & Underhill: The right call for resolving boundary disputes or legal surveys.
Focus (formerly WSP): Ideal for larger commercial or multi-family developments.

The Canadian Blueprint Advantage

We take that 2D CAD data and translate it into a millimeter-precise 3D Topographic Surface inside Revit. By layering this with our as-built measuring scans, we find conflicts—like a sewer lateral right where your foundation should be—long before a single shovel hits the dirt.

Already Have a Survey?

If you aren't sure whether your existing survey is usable for a permit, contact Canadian Blueprint. We can assess your data in minutes and tell you exactly what is missing to satisfy your local City Hall.
