Site Measurement Guide: Using LiDAR Scans for BC Permits

Date Published: April 27, 2026

Download the Key Map to follow along shows an illustration of where each point from the guide is in the tours.

A LiDAR-based virtual tour is not a simple photograph; it is a spatially referenced point cloud. When you navigate our 360 tours, you are interacting with millions of data points captured on-site to ensure your As-Builts are bulletproof.

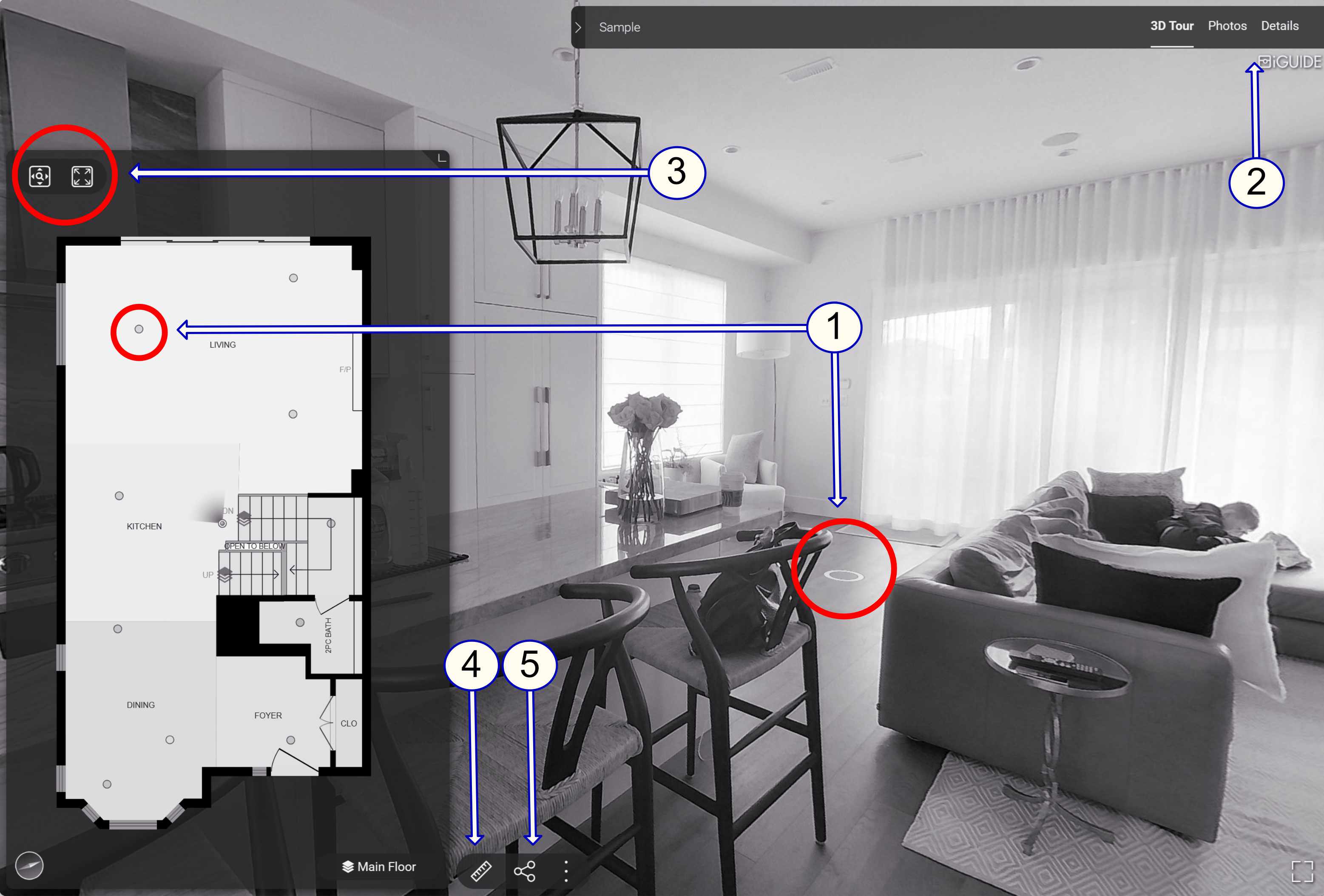

1. Advanced Spatial Navigation

To maximize the utility of the Digital Twin, our interface utilizes two primary movement protocols designed for architectural review:

Visual Halos: Click the circular halos on the floor within the 360 view to 'walk' through the property. This provides the necessary context for BC Building Code assessments, such as verifying egress paths or ceiling heights.
Green Scan Points: Click any dot on the interactive floor plan to teleport to a specific room. Each point represents a 360-degree LiDAR capture, ensuring no structural detail is obscured.
360° Rotation: Once at a scan point, click and drag to perform a full site audit. This is vital for checking the location of existing 'staggered studs' or plumbing stacks without being physically on-site.

2. Extracting As-Built Data & Technical Details

In the top-right corner of the interface, you can access the technical heart of the project. This menu provides the documentation required for a permit-ready application.

Photos: This section displays professional-grade gallery images. These are high-resolution captures designed to highlight specific structural features, mechanical details, and finishing's that standard 360 scans might miss.
Details: The core of the "As-Built" package. Here you will find the property description, downloadable PDF floor plans, specific room measurements, and overall floor area calculations. This data is critical for verifying Floor Area Ratio (FAR) compliance.
Maps: Provides geographic context and map data for the property, ensuring site orientation is consistent with municipal GIS data.

3. Precision Viewing Tools

For commercial and residential renovations, floor plan accuracy is critical to ensuring a seamless fit and avoiding costly field errors.

Pan & Zoom: Use the icon in the top-left to activate high-precision mode. Scroll to zoom into specific wall thicknesses or door clearances.
Spatial Orientation: Use the middle mouse button to pan across the site plan, allowing you to cross-reference structural spans against the architectural floor plans.

1
Navigate the 360 Environment via Scan Points
2
Extract As-Built Data & Technical Details
3
Execute Professional-Grade LiDAR Measurements
4
Coordinate Remote Site Audits with Stakeholders

4. LiDAR-Integrated Measurement Modes

Our 360 tours allow you to extract measurements directly from the data cloud. Depending on the level of precision required for your permit application, you can utilize three distinct modes:

Mode 1: 2D Plan Measurement: Ideal for quick verification of room lengths or hallway widths directly on the drafting map.
Mode 2: 3D Visual Extraction: Double-click start and end points within the 360 view. This is essential for measuring vertical clearances, such as floor-to-ceiling heights required for Adaptable Dwelling compliance.
Mode 3: High-Accuracy Triangulation: This is the professional standard. By selecting the same two points from two different scan locations, the system uses LiDAR triangulation to calculate dimensions with millimeter precision. This is the only way to remotely verify site conditions for structural engineering schedules.

5. Collaborative Permit Management

By using the Share tool, you can send specific, measured views to your Structural Engineer or municipal plan reviewer. This ensures that every stakeholder is working from the same 'source of truth,' eliminating the discrepancies that often lead to permit delays.

Technical Interface: The Project Data Suite

Access high-resolution visual evidence and technical documentation directly from the tour interface.

Tab	Description	Benefit
High-Res Gallery	Professional-grade visual documentation of structural elements, HVAC, and electrical points.	Reduces the need for repetitive, costly site visits.
Technical Details	Automated floor area calculations, room volumes, and downloadable PDF drafting foundations.	Ensures FAR and Site Coverage accuracy for permit reviews.
Site Context	Integration of geographic data and legal property orientations.	Crucial for coordinating setbacks and site plans.

Get Permit-Ready with LiDAR Accuracy

Stop relying on hand-sketched measurements. Our LiDAR scanning services provide the high-authority data needed to clear the Surrey, Burnaby, or Vancouver permit counters.

Book Your On-Site LiDAR Scan

FAQ: Millimeters Matter: The Death of the Tape Measure

How does LiDAR differ from standard 360 photography?

Standard 360 photography is visual only. LiDAR (Light Detection and Ranging) uses lasers to measure the exact distance to every surface, creating a 3D coordinate system (point cloud) that allows for precise architectural measurements.

Can these measurements be used for BC Building Code Schedules?

Yes. Our LiDAR-derived data provides the precision required for designers and professionals to accurately draft Structures.

Why is LiDAR essential for commercial and residential renovations?

In commercial renovations, accuracy is the primary driver for getting your business opened sooner. Precise LiDAR data eliminates the installation errors and mid-project redesigns that keep doors closed and revenue stalled. For residential projects, the advantage lies in vertical connectivity; it ensures measurements across 2 or 3 floors align perfectly, allowing you to order materials with absolute confidence. By merging 360-degree photography with precise floor plans, designers get a full-scope view of the site, effectively avoiding the delays and callbacks that typically derail project timelines.
